Connecting to shared drive from Mule applications

In this article, we will learn how to write files to a particular shared drive location using MuleSoft.

Using the SMB connector in Mule, applications have the ability to perform the below operations on Shared Drive.

  • Directory create: Create a new directory on the SMB share drive.
  • Directory List: List the contents of a directory on the SMB share drive.
  • Directory delete: Delete a directory from the SMB share drive.
  • File write: Writes data out to a file.
  • File read: Reads the contents of a file from the SMB share drive.
  • File delete: Delete a file from the SMB share drive.

In our case let us explore the File write to write some file content to the shared drive.

  1. Write a File to a Shared Drive.

We will try to write a file in a particular shared drive folder with a file name passed as Query parameter through postman with some file content set in the set payload component.

But before that, we need to import the SMB connector from exchange to Mule Pallete or add the SMB dependency in the SMB file.

<dependency>

    <groupId>com.mulesoft.connectors</groupId>

    <artifactId>mule-smb-connector</artifactId>

    <version>2.1.1</version>

    <classifier>mule-plugin</classifier>

</dependency>

After that, you should be able to find the SMB connector in the Mule Pallete window as shown below.

mule palette

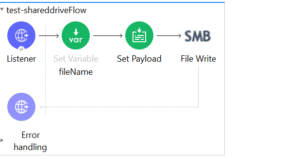

Drag and drop the HTTP listener from the Mule palette. Then add a variable to set filename here we are getting filename from query parameter. And add a set payload component to set some content that needs to be written to the file. And finally, drag and drop the SMB File write module from the Mule palette.

infoview text shareddrive

Create a Global configuration for HTTP Listener and path with the below settings:

infoview config

infoview listener

Add the set variable with the below value to read filename dynamically during runtime

infoview filename

And set the payload as per your requirement (i,e whatever content you would like to write into a file). In my case, I’m just setting it as “Test file content from Mule”

infoview setpayload

And then drag and drop the SMB file write module from the Mule palette and add the below-required connector config:

Domain: Enter a Windows domain for the user to log in with

Host: Hostname of server hosting shared drive

Share: Named path of shared drive

Username: enter the username to login

Password: enter the corresponding password

infoview smbconnector

And then make a test connection to make sure the shared drive configuration is valid. On success, it is ready to use.

infoview smg successful

Also, set the filename field and directory field (to which the file need to be written) with file content as payload as shown below:

infoview filewrite

Now run this application and hit the request from the postman with the below URL:

http://localhost:8081/writeFile?filename=testFile.txt

infoview request

You will get the response status as 200(success), then if you go to the specified shared drive directory and search for testFile.txt, you will find the file there.
